Case Study: Building libpng with Antelope¶

libpng is a C library for reading and writing PNG images. This case connects a real upstream library to Antelope: fetch sources, prepare generated files, build static and shared libraries, run a PNG window application against the shared library, and install and uninstall an isolated package.

The configs live in demos/libpng. Results here describe Linux/x86_64 with libpng 1.6.60.git, not a guarantee for all platforms or optional upstream configurations.

Working Targets¶

These results do not certify the full upstream CTest matrix. Antelope does not automatically translate arbitrary CMake projects: the demo explicitly specifies sources, flags, and preparation commands.

Build the Libraries¶

Install Antelope using Quick Start. Dependencies are Git, Python 3, a C/C++ toolchain, AWK, pkg-config, and zlib development files. The viewer also needs GTK 3 development files and a graphical desktop session.

For Debian/Ubuntu:

sudo apt install build-essential git gawk pkg-config zlib1g-dev libgtk-3-dev

From the repository root:

cd demos/libpng
antel fetch-ref -f static
antel rebuild -f static
antel rebuild -f shared
ar t .antel/build/png16_static/libpng16.a | wc -l
readelf -d .antel/build/png16_shared/libpng16.so.16.60.git | grep SONAME

ref shallow-clones the upstream libpng16 branch into .antel/refs/libpng/. Both targets compile 15 core sources and two Intel SSE2 sources, enabling PNG_INTEL_SSE_OPT=1. The shared target adds -fPIC and uses pkg_config: ["zlib"]. Static consumers must still link zlib and libm.

Prepare Files Without CMake¶

Compilation needs a configuration header; the versioned shared library also needs an ELF version script. before_build runs prepare_libpng.py after refs are ready but before incremental scanning and compilation:

{
  "before_build": [
    {
      "command": ["python3", "prepare_libpng.py"],
      "outputs": [
        ".antel/build/libpng-generated/pnglibconf.h",
        ".antel/build/libpng-generated/libpng.vers"
      ]
    }
  ]
}

The helper copies upstream scripts/pnglibconf.h.prebuilt rather than inventing configuration macros. It preprocesses upstream scripts/vers.c and runs upstream scripts/dfn.awk to produce the symbol version script. In this comparison, libpng.vers matched the CMake-generated script byte for byte. The prebuilt header is not a replacement for every optional CMake configuration; customized features may need a different preparation step.

Declared outputs participate in change detection: dependency changes recompile affected sources, and version script changes trigger relinking. Failed commands or missing declared outputs abort the build. No CMake invocation is needed for these library targets. See Configuration.

Versioned Shared Library¶

.antel/build/png16_shared/
  libpng16.so.16.60.git
  libpng16.so.16 -> libpng16.so.16.60.git
  libpng16.so -> libpng16.so.16.60.git

The SONAME is libpng16.so.16. The config declares version: "16.60.git" and passes -Wl,--version-script=.antel/build/libpng-generated/libpng.vers to the linker.

A Window Using the Built so¶

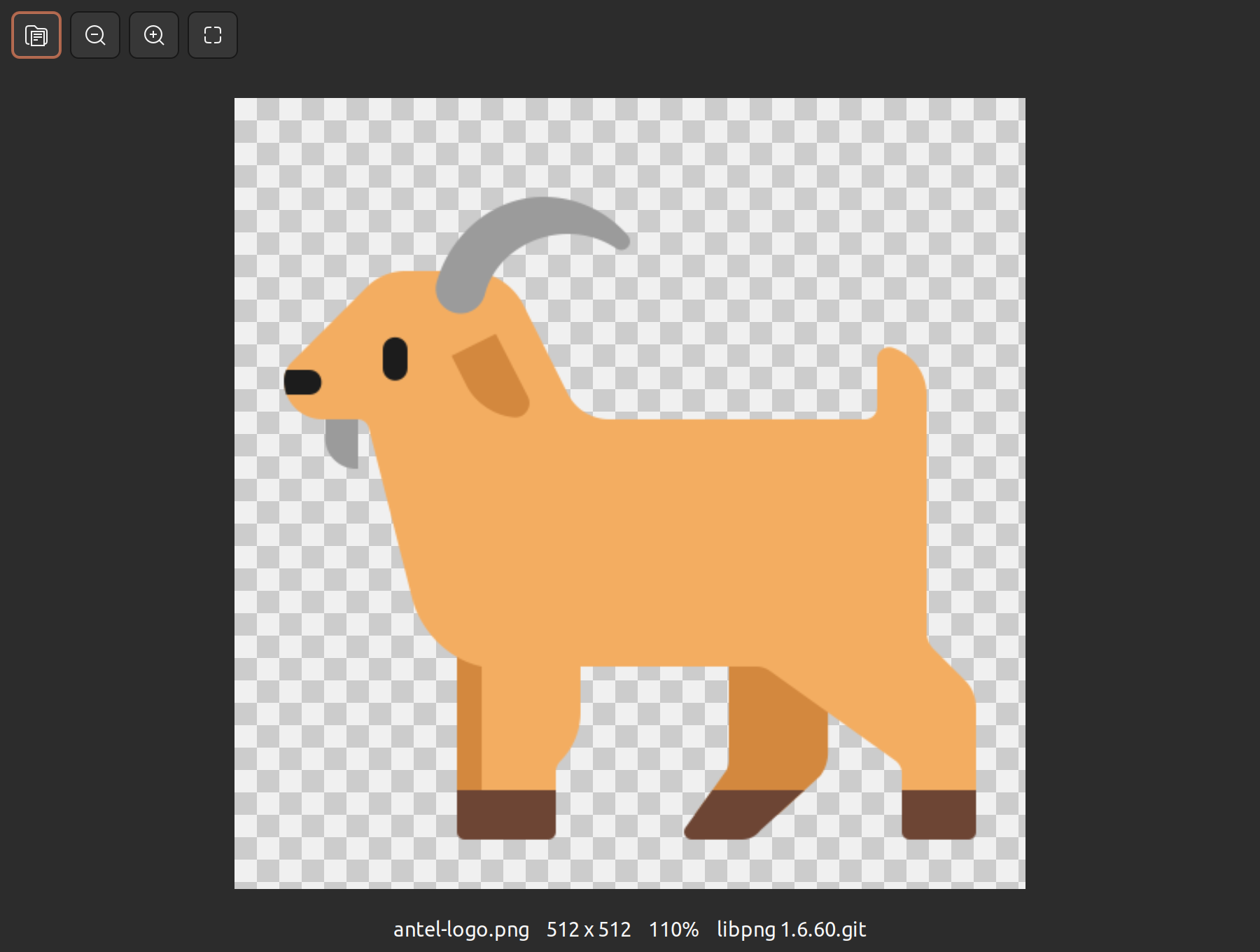

Actual window capture: the checkerboard shows transparency; the status bar lists image dimensions, zoom, and the loaded libpng version.

antel rebuild -f pngviewer
./.antel/build/pngviewer_pngviewer/pngviewer
./.antel/build/pngviewer_pngviewer/pngviewer /path/to/image.png

GTK 3 provides the window, chooser, and drawing surface. PNG decoding directly calls the built libpng's png_image_begin_read_from_file and png_image_finish_read, not GTK's image loader. With no path, data_files supplies Antelope's transparent PNG logo.

The window offers Open, Zoom In, Zoom Out, Fit to Window, and a transparency checkerboard. Invalid images leave the current image intact. Limits are 16384 pixels per dimension and 256 MiB of decoded RGBA data.

ldd .antel/build/pngviewer_pngviewer/pngviewer | grep libpng
./.antel/build/pngviewer_pngviewer/pngviewer --smoke-test

The verified loader path points to .antel/build/png16_shared/libpng16.so.16; the logo decodes to 512 x 512. The smoke test renders a window, saves its capture to /tmp/antel-pngviewer.png, and exits.

Isolated Installation and Removal¶

The demo's install.json contains:

{
  "projectName": "libpng",
  "install_path": "/usr/local"
}

antel install creates /usr/local/libpng/, not scattered system files. It installs all built targets by default. Add "projects": ["png16", "pngviewer"] to install only the libraries and viewer.

/usr/local/libpng/
  .antel-install
  bin/
  lib/
  share/

Executables go to bin/, libraries and symlinks to lib/, and deployed resources to share/. .antel-install records installed relative paths and owning build projects. Do not delete or edit it: it is not required to run programs, but is needed for safe install and uninstall management.

# Run from demos/libpng; /usr/local usually requires administrator privileges
sudo antel install
/usr/local/libpng/bin/pngviewer
sudo antel uninstall

The viewer uses $ORIGIN/../lib and relative resource paths. A temporary-prefix test verified that moving the entire package still loads its own so and logo. For other upstream programs without an installation RPATH, set the package's LD_LIBRARY_PATH for that invocation rather than registering a global cache.

Uninstall removes only manifest entries, cleans empty directories, and preserves added user files without needing the original build tree. Legacy empty markers must first be upgraded by reinstalling. Earlier scattered system installations require explicit uninstall --legacy-system; preview with --dry-run first. See Commands.

More Upstream Programs¶

After fetching the source, prepare the ICC fixture and build the remaining targets:

python3 prepare_icc_fixture.py
for target in pngtest pnggetset pngvalid pngstest pngunknown pngimage pngfix png-fix-itxt; do
    antel rebuild -f "$target"
done
for target in example-iccfrompng example-pngpixel example-pngtopng example-simpleover; do
    antel rebuild -f "$target"
done
./.antel/build/pngtest_pngtest/pngtest .antel/build/pngtest_pngtest/testdata/pngtest.png /tmp/png-roundtrip.png
./.antel/build/pngvalid_pngvalid/pngvalid --gamma-16-to-8

See Examples and the demo README for the input files each program expects. The case demonstrates an actual library's source, generated files, dependencies, applications, and distribution workflow, not a replacement library built around a minimal hello-world consumer.
